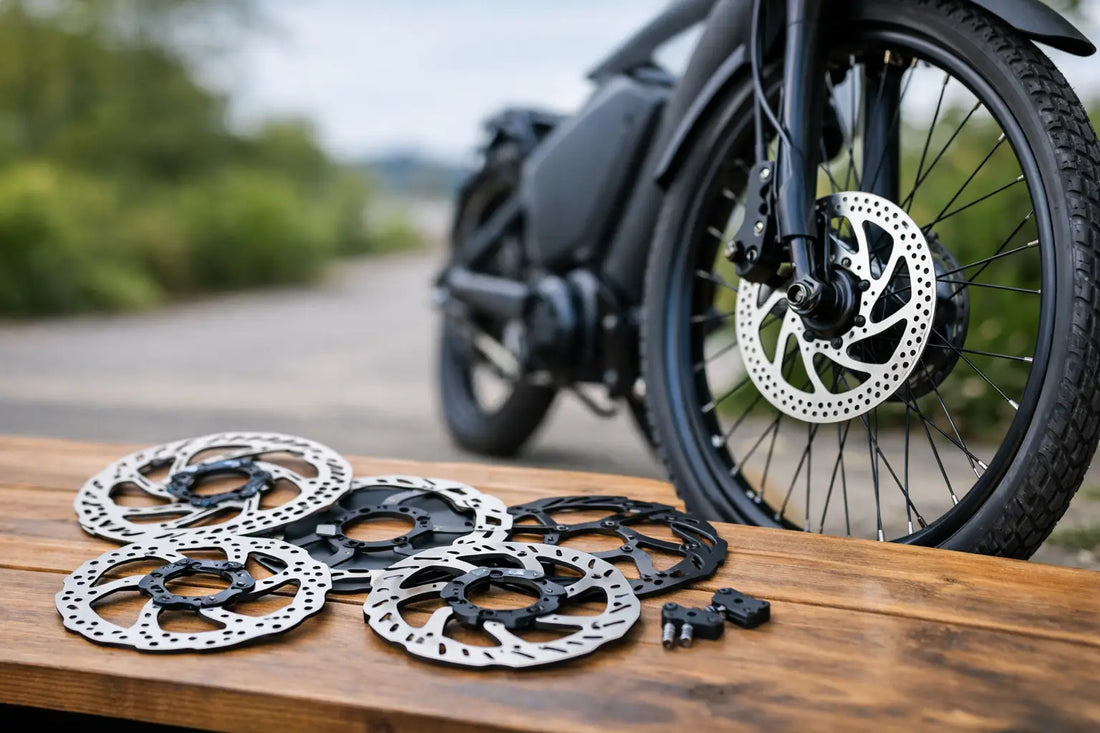

Which brake disc should I choose for my e-bike?

An electric bike weighing 25 kg going at 20 mph doesn't brake like a classic city bike. Between the weight of the motor, the battery, panniers, a child, or a downhill ride, the braking system works harder. So, which disc brake should you choose for your electric bike? The right answer depends primarily on four concrete elements: the diameter allowed by your fork and frame, the type of hub mounting, the thickness compatible with the caliper, and your actual use.

A larger or higher-end disc will never compensate for an incompatible setup. So, start by identifying your bike's specifications, then choose a part suitable for your riding style, your pads, and your caliper.

Which disc brake for an electric bike depending on use?

Diameter is the first criterion to check. The larger the disc, the more powerful the braking and the better its resistance to heat. It requires less lever effort to achieve the same deceleration. This is particularly useful on a loaded e-bike or when used in city streets with many stops.

A 160 mm disc is often suitable for a light urban electric bike, for flat commutes and gentle riding. It's a common size, easy to find, and sufficient when the bike, rider, and cargo remain within a reasonable weight range.

The 180 mm is a very relevant choice for regular commuters, light cargo bikes, powerful electric folding bikes, and electric mountain bikes used on hilly terrain. It provides more reassuring braking without transforming the bike into a downhill machine. At the front, where most of the braking force is concentrated, going from 160 to 180 mm can make a real difference.

The 203 mm, sometimes 200 mm depending on the brand, is aimed at heavy electric mountain bikes, long descents, sporty riders, and users who ride with a significant load. Its surface dissipates heat better and limits power loss during repeated braking. On the downside, it adds a little weight and doesn't automatically fit all bikes.

Before increasing the diameter, check the maximum size accepted by the fork and frame. You generally need a caliper adapter specific to the chosen diameter. Mounting a large disc without a suitable adapter, or on a mount not designed for it, compromises pad alignment and safety.

Front and rear: do they need to be the same size?

Not necessarily. Many electric bikes run with a larger front disc than the rear, for example, 180 mm in front and 160 mm behind. This is an effective compromise: you strengthen the brake that works the most, while keeping a lighter rear setup that is often less exposed to stress.

On an e-MTB or a heavy bike, two 180 mm or even 203 mm discs may be justified. The goal is not to lock the wheel at the slightest pressure. The correct setup should remain progressive, stable, and durable when the temperature rises.

Disc mounting: 6-bolt or Center Lock

The second point is non-negotiable: your disc must match your hub. The two most common standards are 6-bolt and Center Lock mounting.

A 6-bolt disc screws directly onto the hub with six screws. This is the most common system on many electric bikes, mountain bikes, and replacement wheels. The screws are tightened progressively in a star pattern, to the torque indicated by the manufacturer. This assembly is simple, provided you use the correct screws and suitable tools.

The Center Lock system uses a spline on the hub and a lock ring. It is quick to install, clean, and very common on certain wheels. A Center Lock disc cannot be mounted directly on a 6-bolt hub, and vice versa. Adapters exist, but they are not always the best choice on a powerful electric bike or one subjected to high stress. Whenever possible, prioritize a disc that directly matches the hub's standard.

If you are changing a wheel, do not order the disc before checking its mounting. A clear photo of the hub, the number of screws, or the presence of a lock ring can often prevent an ordering error.

Thickness, caliper, and pads: the compatibility that changes everything

Two discs of the same diameter may not have the same thickness. Standard models often range around 1.8 mm, while some discs designed for e-bikes or aggressive riding reach 2.0 mm, 2.3 mm, or more.

A thicker disc absorbs heat better and is more resistant to deformation. This is an asset for a fast, heavy electric bike or one used on descents. But your caliper must be designed to accept this thickness. In a caliper designed for a thin disc, the pads may rub continuously, the pistons may lack retraction, or the disc may not fit at all.

The rule is simple: check the thickness of your current disc and the caliper manufacturer's recommendation. Do not choose a part simply because it seems more durable. The right part is the one that works together with your complete system.

The pads are as important as the rotor. Organic pads generally provide quiet and progressive braking, appreciated in the city and in dry weather. They wear out faster in the rain or when temperatures are high. Metallic or semi-metallic pads are more durable and better suited for wet commutes, e-MTBs, and loaded bikes. However, they can be noisier and require a compatible disc.

Fixed, ventilated, or floating disc: where to put your budget?

A fixed steel disc is a reliable choice for most urban commutes. It is economical, simple to replace, and perfectly suited for an electric bike used daily, as long as the diameter and thickness are correct.

Discs with a better ventilated or heat-dissipating braking surface provide a useful gain if you do long descents, ride at high cadence in traffic, or if your bike regularly carries loads. Their shape promotes cooling, but it does not replace proper braking technique. Keeping the brakes lightly engaged during a long descent heats the system more than braking hard, briefly, then releasing.

The floating disc generally combines a steel braking surface with an aluminum center spider. It can better manage thermal expansion and reduce the risk of warping during intensive use. This is an interesting option on a high-performance electric mountain bike or a heavy bike, but not an obligation for commuting on flat terrain. Invest first in compatibility, good pads, and regular maintenance.

When to replace an electric bike brake disc?

A disc is not only replaced when it is visibly bent. A slight warp can be felt by cyclical rubbing or a lever that pulses when braking. It can sometimes be corrected with a truing tool, provided the disc is neither cracked nor too worn.

Replace it without delay if it shows a crack, significant deformation, persistent bluish signs of overheating, or a thickness below the limit engraved on the rotor. This minimum value is often indicated directly on the part. Measuring with calipers is the most reliable method, especially on an electric bike that is ridden all year round.

If the brake squeals or brakes poorly after a replacement, the disc is not always to blame. A pad contaminated by oil, chain lubricant, or inappropriate cleaner quickly loses its effectiveness. Clean the rotor with a dedicated brake cleaner or isopropyl alcohol, without touching the track with greasy fingers. A contaminated pad generally needs to be replaced.

Bedding-in after assembly

A new disc and new pads need bedding-in. In an open area, perform a series of progressive brakes, without locking the wheel or stopping with the lever squeezed on a very hot disc. The goal is to evenly deposit a thin layer of material on the rotor. After this bedding-in, the lever becomes more consistent and the braking more powerful.

TPLM offers braking components and parts organized by need and compatibility: a simple method to avoid mixing diameter, mounting, and thickness. Take the time to note down your current setup information before ordering. A perfectly adapted disc is almost unnoticeable in everyday use, until an emergency stop proves that you made the right choice.
